NIKESTORM LAB

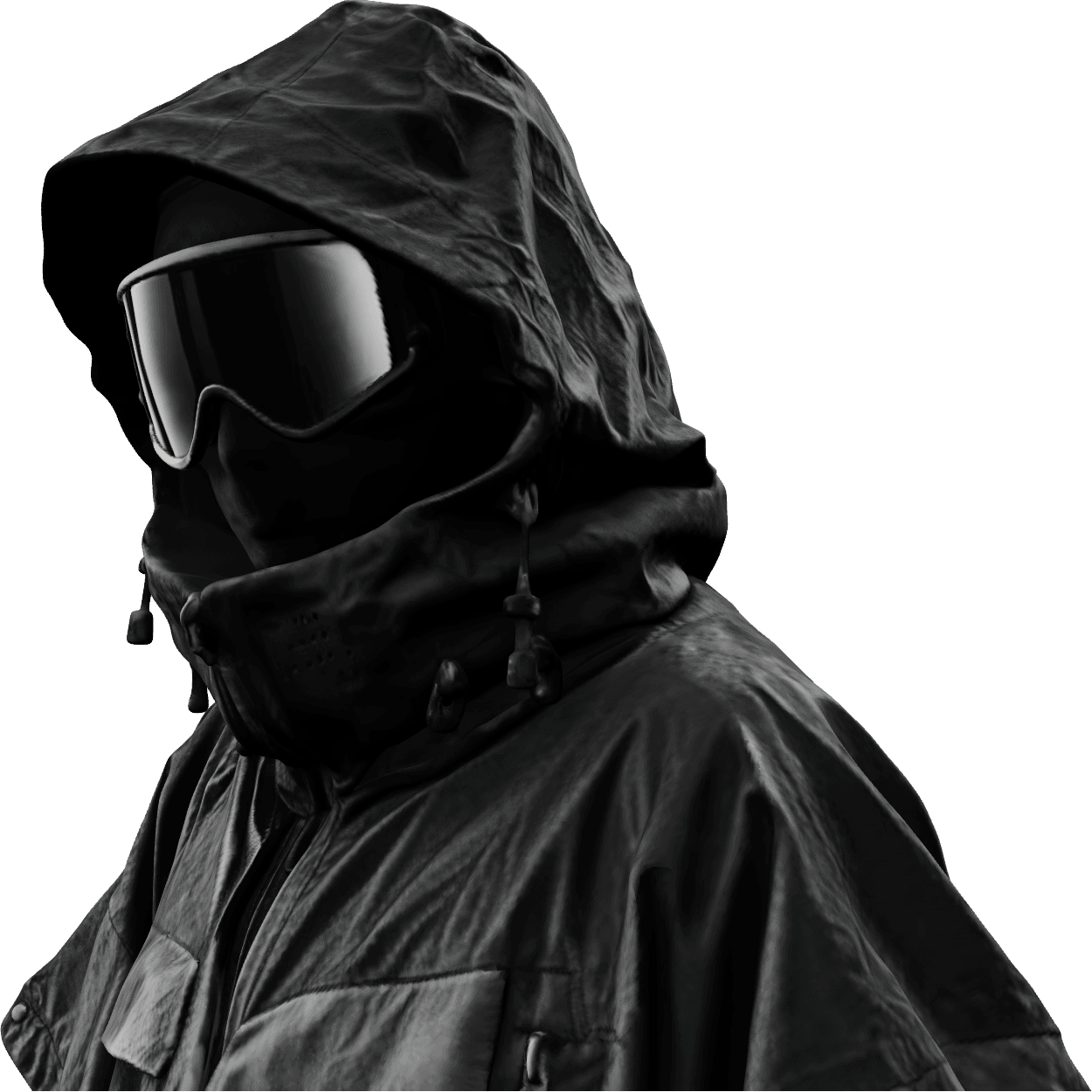

SpecimenSL-04 · Storm shell platform

02 — Construction · exploded view

Four layers. One system.

Scroll to separate the shell ↓

01
Outer shell
40D ripstop · 3L
Ripstop face fabric with a water-repellent finish. Rain beads and runs off before it can load the fabric.
02
Waterproof membrane
30K MM
Microporous barrier. Liquid water stays out, body vapour gets out.
03
Thermal layer
60 G/M²
Body-mapped insulation: warmth where heat is lost, mobility where you move.
04
Inner system
20K G/M²/24H
Brushed lining and ventilation channels move moisture off the skin.

03 — Performance dataIllustrative specifications

01 — Test result

Hydrostatic head. Scale 0–40K mm.

0KMM

02 — Test result

Moisture vapour transfer. Scale 0–30K.

0KG/M²/24H

03 — Test result

Air permeability blocked at 0 CFM.

Move across the surface to inspect the weave. Switch the surface test to see it under rain.

Face fabric · Ripstop weaveFinish · Water-repellent
